THE FUTURE IS NOW POWER, SPEED, RESULTS : Lumix Q
The first Nd:YAG Q-Switch laser: 130,000 Watts of power for Physiotherapy and Rehabilitation.
The wide frequency regulation range (from 1Hz to 100.000Hz) makes LUMIX® Q the only truly Therapeutic Laser in the world with Nd: YAG Q-Switched Superpulsed Technology.
DESCRIPTION
The high peak power and the high average power that reaches allow for large amount of energy in depth, ensuring a particularly high tissue penetration.
- Immediate antalgic effect.
- Less sensitive to phototype complexion.
- Reach dept of action never reached before.
- Reduce treatment time and number of sessions.
- The nano-impulses allow to supply large amounts of energy without elevated thermal cutaneous effects.
LUMIX® Q action increases ATP production, significantly increasing the cellular regenerative ability
Further biostimulation effect benefits are:
- increase protein synthesis: new proteins replace damaged ones
- increased immune system defence: activation of macrophages and neutrophils, cells responsible for the body’s defences
- increase keratinocytes and blood vessel cells: tissue healing extension
- increase factors that regulate growth and cell proliferation: this takes place in fibroblasts, cells that are the foundation of most body tissues
- increase bone formation capacity: upregulates osteoblastic activity and downregulates osteoclastic activity. In particular, it has been observed that it facilitates osseointegration of implants and speeds up tissue healing.
Clinical apply
- BIOSTIMULATION: Bone regeneration, tissue regeneration, bedsores, ulcers (vascular ulcers of the malleolus, diabetic ulcers, etc.), sores, lesions, perilesional points, edema, post-distorting edema, bruising, chondropathies, biointegration of implanted materials.
- PAIN THERAPY: Neck, shoulder, and back pain, back injury, sciatica, and general radicular syndromes of inflammatory and biomechanical origin. Articular and periarticular pain (direct and indirect antalgic effect for anti-inflammatory action). Inflammatory and degenerative neuritis and neuropathies. Muscle contractures and myofascial trigger areas.
- POST-TRAUMATIC SPORTS MEDICINE: Post-traumatic edema, traumatic origin capsular and ligamentous inflammation, sprains and muscle strain, distortions, contusions.
- ANTI-INFLAMMATORY (Acute tendinitis and relapse phases of chronic tendinopathy.)
- LOCALIZED ANTI-EDEMA
- REHABILITATION THERAPY (Post-surgery therapy, after removal of plaster casts)

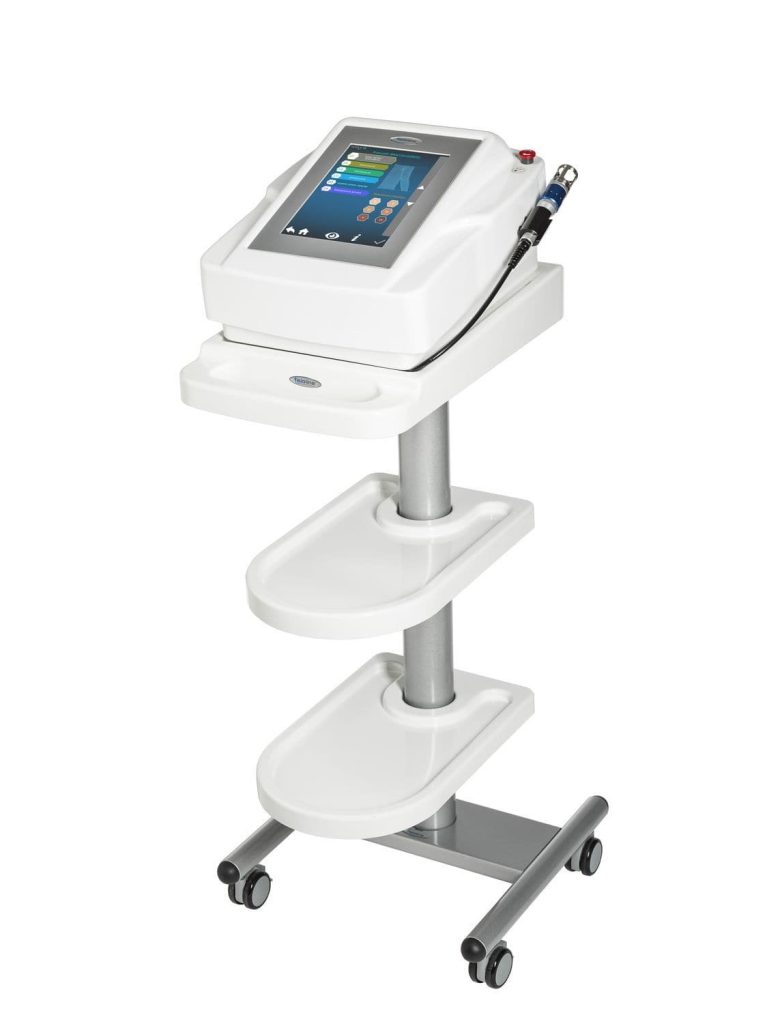

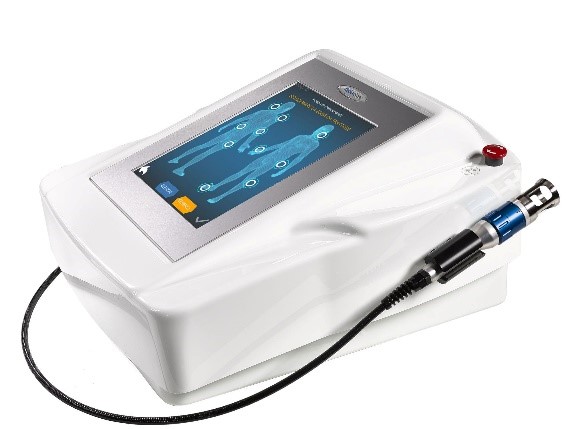

LUMIX Q
Type
Q-Switched laser: 130,000 Watts
Laser source
Nd: YAG Class 4
Wavelength
1064nm
Maximum Power
up to 130kW = 130.000W
Operation mode
continuous, burst mode or pulse train
Pulse Duration
7-35ns
Frequency
1-100,000 Hz
Pilot Beam
Red laser guide light 650nm
Control mode
Color Touch Screen 10.4”
Dimension
370x440x220mm (WxLxH)
Weight
15Kg
